PGP Pop Up Sprinklers in Kenya
PGP Pop Up Sprinklers are shaping the aesthetic nature and health of lawns in residential, commercial and recreational facilities in Kenya. Our pop-up | lawn sprinklers are known to be cost-effective and reliable for a greener environment.
How Much are PGP Sprinklers?
Pop up Sprinkler Prices in Kenya ;
- ½ inch – 3,000
- ¾ inch – 4,000
- 1 inch – 5,500
What are PGP Pop Up Sprinklers?
Hunter PGP sprinklers are popular lawn sprinklers in Kenya due to their wide range of nozzles and full angle irrigation.
PGP Pop Up Sprinkler Specifications
- 10 cm length
- adjustable from 40° to 360°
- ½’’, ¾” and 1’’ sizes
- 12 standard red nozzles
- Radius: 4.9 to 14.0 m
- Flow: 0.10 to 3.22 m3/hr: 1.7 to 53.7 l/min
- Recommended pressure range: 1.7 to 4.5 bar; 170 to 450 kPa
- Operating pressure range: 1.4 to 7.0 bar; 140 to 700 kPa
Features
- Pop-up action every time water flow is open
- Adjustable spray direction from 40 to 360 degrees.
- Gear driven rotation with accurate performance.
- Numerous options of nozzle diameters enable adjustment of spray radius and flow rate.
Complete Kit : PGP Pop Up Sprinklers in Kenya
- Main HDPE Pipe – water supply from the source to sprinkler head
- Tee, elbow, reducing coupling, fitting, end caps – connects irrigation pipes and other components.
- Controllers – controls the operation of sprinklers by activating or deactivating the solenoid valves.
- Rain shut off device/sensors – detect the moisture content of the soil
- Solenoid Valves – automatic mechanical valves that automatically control the flow of water.
- Pressure tank – provides water supply to prevent pressure surges and pump cycling when water pressure drops
How PGP Pop Ups Sprinklers Operate
• Pop-up sprinkler spins round while irrigating your lawn quietly on a 40–360-degree angle as per the model.
• High water pressure activates it to rise and start the irrigation activity. When the set irrigation time is over, the sprinkler head is deactivated and retracts to its place.
How to choose the Right PGP Pop-up Sprinklers in Kenya
Pop-up sprinkler come in different models and sizes, all best for varying lawn irrigation needs. To choose the best pop up for your lawn, you should consider.
- The size of your lawn – it decides whether you need a small or big flow radius sprinkler.
- Water requirement – how much flow rate does your lawn need?
- Efficiency – efficiency varies with models. Choose popular effective brands.
- Water Pressure – consider the operating pressure. Can your water source meet the pressure needs of the sprinkler?
- Cost – it serves as a major deciding factor.

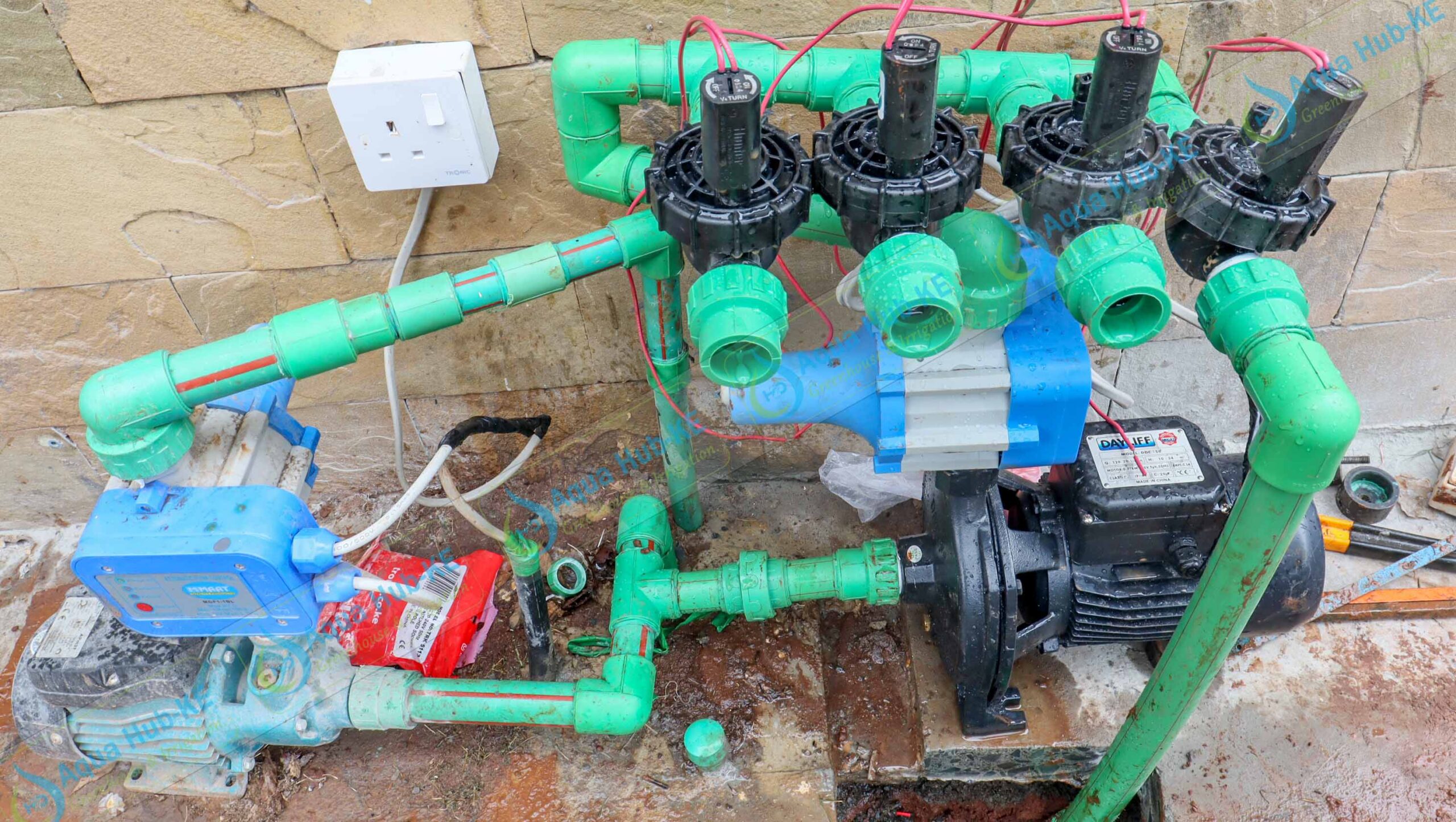

How to Install Automated Pop Up Lawn Irrigation System
- Start by planning the layout of the irrigation system. Check the pressure of your water source to determine whether you need a booster pump.
- Dig trenches and lay the pipes.
- Lay the mainline pipe and connect it to the water source
- Connect the mainline pipes to the submain pipes.
- Use a tee fitting to connect the pop-up sprinkler to the sub main line.
- Bury the trenches to secure the pipes.
- Install a booster pump on the irrigation system.
- Install and connect solenoid valves to the irrigation system.
- Manually Open the solenoid valves to test if they work.
- Check electric supply to consider where you will install your controller.
- Install solenoid valves and connect to the pipe work.
- Mount the controller on the wall near the area.
- Conduct wiring of the solenoid valves to the controller.
- Program the controller according to your preferred irrigation schedule
Step-by-Step Guide for Replacing a PGP Pop-Up Nozzle
- Insert the end of the sprinkler adjustment wrench to the lifting socket above the nozzle
- Turn the wrench for a quarter turn and pull it up.
- Snap the insertion collar along the back and ensure the nozzle is at the center of the space not covered by the collar.
- Insert the Allen wrench side into the raised rubber arrow. In case it goes beyond outside the retention screw, unscrew it back until it is above the nozzle
- Pry out the nozzle using a small screwdriver
- Insert the replacement nozzle with your finger and push it inside.
- Turn the wrench clockwise until it protrudes outside the nozzle.
- Remove the Key and the insertion collar.
PGP Pop Ups vs Conventional Sprinkler Systems
PGP sprinklers use a gear-driven mechanism (activated by water pressure). Impact sprinklers, on the other hand, use water pressure to rotate the arm to effect water distribution.
Impact Sprinklers covers wide areas compared to PGP sprinklers. Pop ups can reach a maximum of 15m radius while impact sprinklers cover 45 m on maximum.
Maintenance of PGP sprinklers is easier as it does not clog easily compared to impact types.
Installation of impact sprinklers is easier than installation of impact sprinkler models.
What are the Common Applications of PGP sprinklers in Kenya?

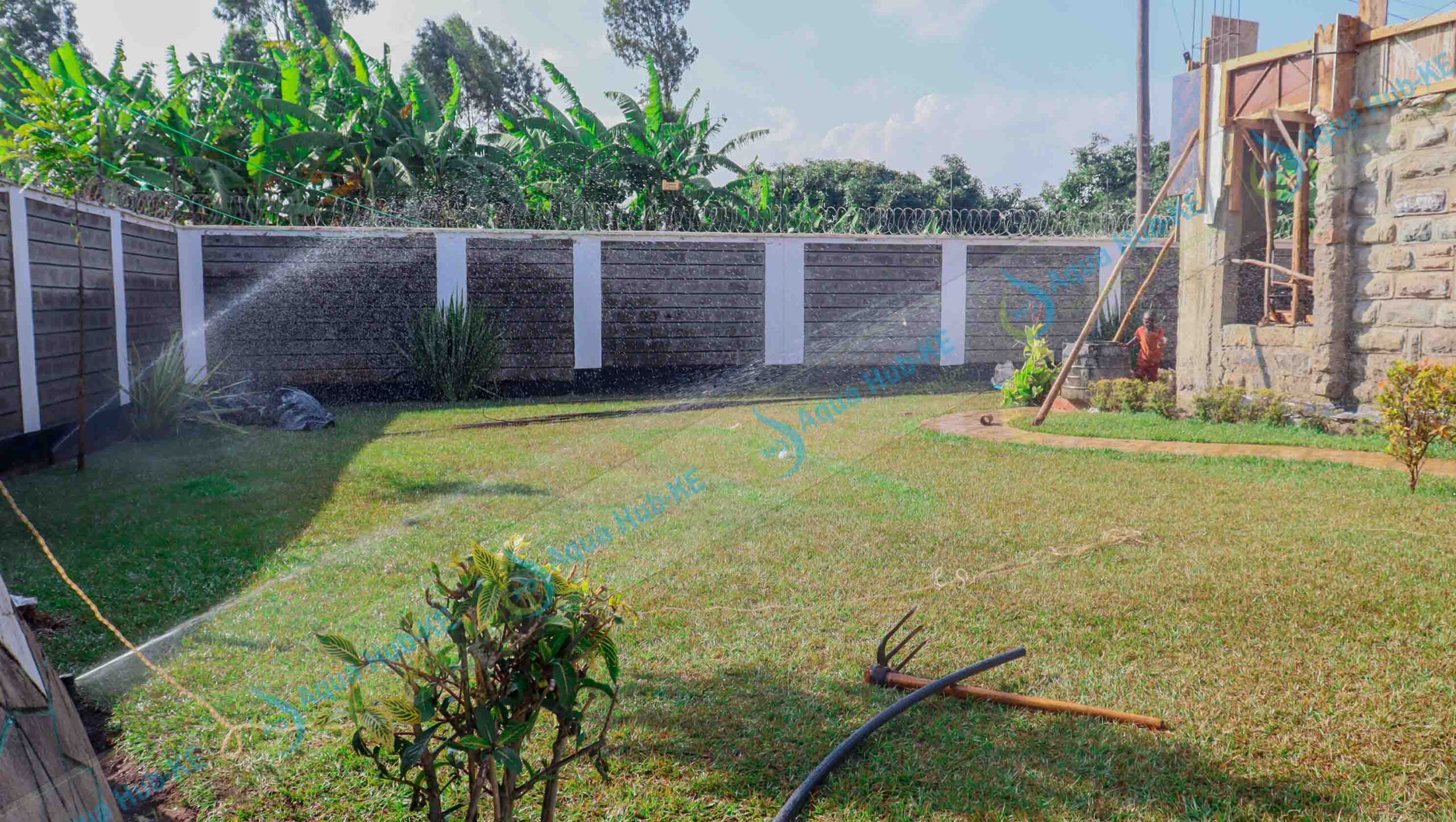

- Irrigation of lawns in residential areas.
- Light or heavy irrigation of lawns in commercial areas.
- Watering gardens and compounds.
- Irrigation of sports field such as rugby pitch.
- Turf irrigation in parks, hospitals and other institutions.
What are the Benefits of PGP Pop Up Sprinklers?
- Adjustable arc
- Easy to adjust the arc due to its Quick check arc Mechanism
- Designed to last long due to its hard plastic material.
- Integrated with rubber cover on the inside and water screen filter to keep dirt out and prevent clogging.
- Highly effective performance makes them reliable for lawn irrigation.
- Uniformity in water distribution on your lawn field
- Quiet operation hence no disturbance in schools, institutions, and residential areas.
- Reverse mechanism ensures all the dry patches are covered.
- Withstands harsh weather conditions because of its robust design.
- Suitable for different landscapes.
- Has precise pattern control with no wasteful backsplash onto walkways or buildings
- Through-the-top adjustment with helpful symbols makes it easy to adjust, wet or dry
- Some PGP models allow adding the number of stations
How to Maintain Pop Up Sprinklers
• Regular inspection and cleaning of the sprinkler.
• Check water pressure frequently to ensure proper performance of the sprinkler head.
